PVC Fabricated Tail Piece: Everything You Need to Know

Modern irrigation, plumbing, and industrial piping systems rely on high-quality pipe fittings to ensure efficient water flow, leak-proof connections, and long-lasting performance. Among these essential fittings, the PVC Fabricated Tail Piece (FTP) plays a vital role in creating secure flange and pipe connections.

Whether used in agricultural irrigation, water supply systems, construction projects, or industrial applications, fabricated tail pieces provide a durable and reliable solution for joining PVC pipelines with valves, pumps, and other accessories.

What is a PVC Fabricated Tail Piece?

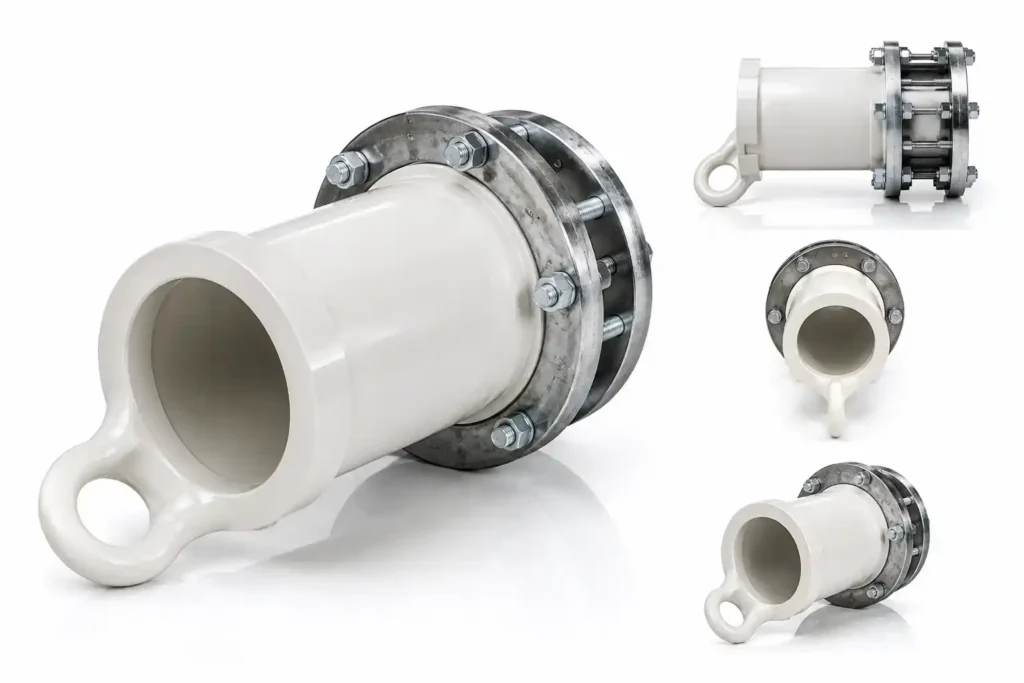

A PVC Fabricated Tail Piece (FTP) is a specially manufactured pipe fitting designed to connect PVC pipelines with flange-based accessories such as valves, pumps, filters, meters, and fittings.

Unlike conventional molded fittings, fabricated tail pieces are manufactured using precision fabrication techniques to provide higher strength, dimensional accuracy, and compatibility with various industrial and agricultural piping systems.

Most fabricated tail pieces consist of:

• PVC pipe section
• Tail ring
• Mild steel reinforcement (optional)
• Rubber sealing surface
• Precision-machined end connections

These components work together to provide a leak-proof, vibration-resistant, and durable pipe joint.

Why is a Fabricated Tail Piece Important?

Every piping system contains multiple connection points.

Weak connections often become the primary source of:

• Water leakage
• Pressure loss
• Pipe vibration
• Misalignment
• Equipment failure
• Maintenance costs

A high-quality fabricated tail piece eliminates these issues by creating a secure flange connection that withstands pressure, vibration, and environmental conditions.

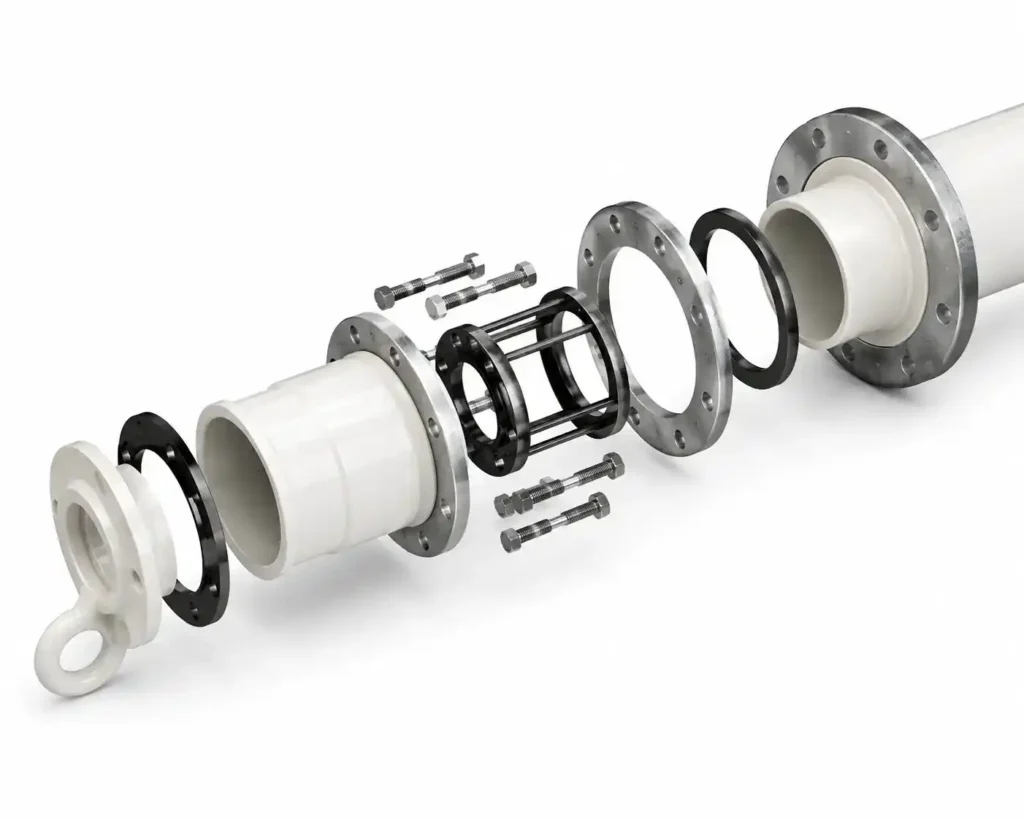

Construction of PVC Fabricated Tail Piece

A fabricated tail piece generally includes the following components:

PVC Body

The main body is manufactured using premium-quality PVC that offers:

• Corrosion resistance
• Lightweight construction
• Chemical resistance
• Long service life

Mild Steel Reinforcement

Many heavy-duty fabricated tail pieces incorporate mild steel reinforcement to improve:

• Structural strength
• Pressure handling
• Impact resistance

Steel reinforcement makes these fittings suitable for industrial and high-pressure irrigation systems.

Tail Ring

The tail ring provides a secure flange connection between:

• Pumps
• Butterfly valves
• Non-return valves
• Filters
• Pipe fittings

The ring ensures proper bolt alignment and even pressure distribution.

Rubber Sealing Surface

A rubber-coated or gasket-compatible surface helps create:

• Leak-proof joints
• Better sealing
• Reduced vibration
• Easier installation

Working Principle

The fabricated tail piece acts as an interface between PVC pipes and flange-mounted equipment.

The connection process includes:

1. Insert the PVC end into the pipeline.
2. Position the tail ring.
3. Install the rubber gasket.
4. Align the flange holes.
5. Tighten bolts uniformly.

Once installed, the fitting distributes pressure evenly while preventing leakage and movement.

Types of Fabricated Tail Pieces

Different industries require different types of fabricated tail pieces.

PVC Fabricated Tail Piece

Ideal for:

• Agricultural irrigation
• Water pipelines
• Domestic plumbing
• Low-pressure systems

PVC & Mild Steel Fabricated Tail Piece

Recommended for:

• Heavy-duty irrigation
• Industrial pipelines
• Pump installations
• High-pressure applications

Rubber-Coated Tail Piece

Provides:

• Better sealing
• Corrosion protection
• Reduced vibration
• Longer service life

Flanged Fabricated Tail Piece

Used where equipment must be disconnected easily for maintenance.

Technical Specifications

The following specifications may vary depending on the manufacturer and project requirements.

Specification	Details
Material	PVC, Mild Steel
Size Range	2″–16″
Pressure Rating	Up to 6 kg/cm² (varies by model)
Surface Finish	Smooth / Polished
Connection Type	Flanged
Application	Irrigation, Plumbing, Industrial
Color	White, Grey, Black (customizable)
Country of Origin	India

Standard Sizes

Common sizes include:

• 2 Inch
• 2.5 Inch
• 3 Inch
• 4 Inch
• 5 Inch
• 6 Inch
• 8 Inch
• 10 Inch
• 12 Inch
• 14 Inch
• 16 Inch

Custom sizes can also be manufactured based on project requirements.

Features of PVC Fabricated Tail Piece

A quality fabricated tail piece offers several important features:

• High mechanical strength
• Excellent corrosion resistance
• Lightweight construction
• Leak-proof sealing
• Easy installation
• Low maintenance
• Long operational life
• Smooth internal water flow
• UV-resistant materials
• Precision manufacturing
• High dimensional accuracy
• Chemical resistance
• Durable flange connection
• Compatible with multiple pipe systems

Benefits

Using a fabricated tail piece provides numerous advantages:

Prevents Leakage

Precision fabrication ensures tight and reliable joints.

Longer Service Life

Quality materials withstand harsh environmental conditions.

Reduced Maintenance

Leak-free systems require fewer repairs and lower maintenance costs.

Better Water Flow

Smooth interiors reduce friction and pressure loss.

Cost-Effective

Although slightly more expensive than standard fittings, fabricated tail pieces reduce long-term operational costs.

Easy Replacement

Flanged connections simplify maintenance and equipment replacement.

Applications

PVC Fabricated Tail Pieces are widely used across multiple industries.

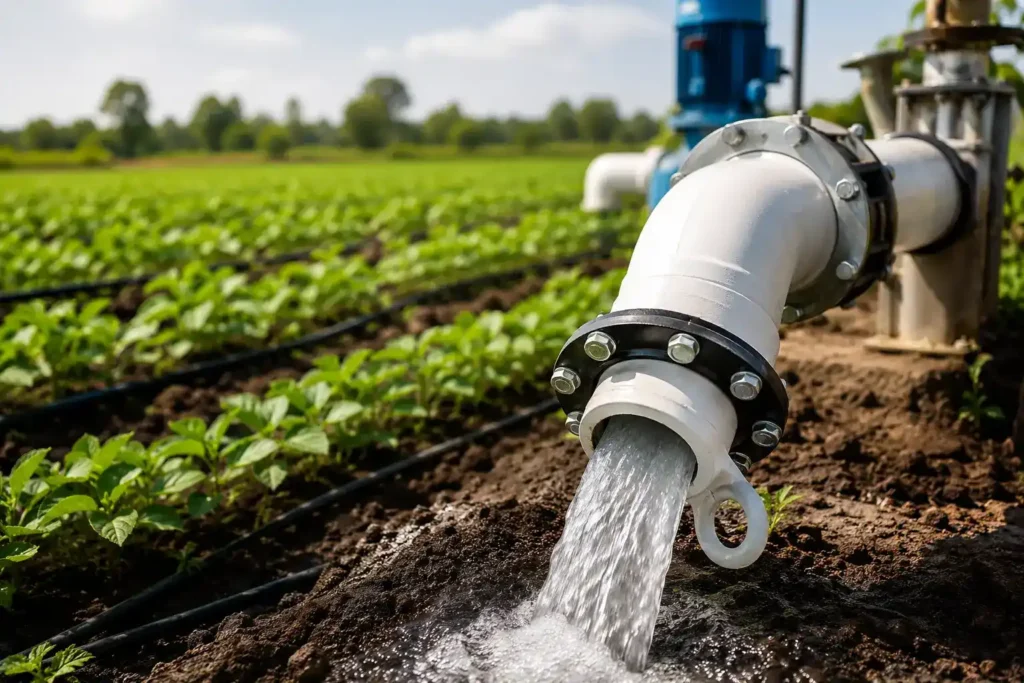

Agriculture

• Drip irrigation
• Sprinkler systems
• Farm water distribution
• Borewell connections
• Irrigation pumping stations

Plumbing

• Building water supply
• Commercial plumbing
• Residential water systems

Industrial

• Chemical plants
• Process pipelines
• Manufacturing units
• Cooling water systems

Water Treatment

• Filtration plants
• Pump houses
• Municipal water supply
• Wastewater treatment

Construction

• Infrastructure projects
• Civil engineering works
• Utility pipelines

Installation Guide

Correct installation ensures maximum performance.

Step 1

Inspect all components before installation.

Step 2

Clean the pipe ends thoroughly.

Step 3

Position the gasket correctly.

Step 4

Align the flange holes.

Step 5

Insert bolts and tighten evenly in a crisscross pattern.

Step 6

Avoid overtightening.

Step 7

Test the pipeline before full operation.

Maintenance Tips

Routine maintenance improves product lifespan.

• Inspect joints periodically.
• Replace damaged gaskets.
• Check bolt tightness.
• Remove accumulated debris.
• Protect exposed fittings from excessive impact.
• Monitor for leakage.
• Replace worn components promptly.

Common Problems and Solutions

Leakage

Cause: Damaged gasket or loose bolts.

Solution: Replace gasket and retighten bolts evenly.

Misalignment

Cause: Incorrect installation.

Solution: Realign the flange before tightening.

Corrosion on Steel Components

Cause: Harsh environmental conditions.

Solution: Use coated or galvanized components where required.

How to Choose the Right Fabricated Tail Piece

Consider the following factors:

• Pipe diameter
• Pressure rating
• Material compatibility
• Operating temperature
• Installation environment
• Type of fluid
• Flange standards
• Quality certifications
• Manufacturer reputation
• Warranty and support

Why Choose a Quality Manufacturer?

A trusted manufacturer offers:

• Premium raw materials
• Precision engineering
• Consistent quality
• Timely delivery
• Technical support
• Product testing
• Reliable after-sales service
